The main purpose for this post was to put the settings up for all of you people that lose their settings sheet.

Multiplier M4 M3 M2 M1
300/1100 on on on on
350/1150 on on on off
400/1200 on on off on
450 on on off off
500 on off on on
550 on off on off
600 on off off on
650 on off off off
700 off on on on
750 off on on off
800 off on off on
850 off on off off
900 off off on on
950 off off on off
1000 off off off on
1050 off off off off

Voltage V2 V1
1.75 off off
1.85 off on
1.95 on off
2.05 on on

Notes:

1.95, 2.00 and 2.05 volts are available but were left off the original settings sheet to save some processors. If you would like the extra settings, please click on TECH SUPPORT on the home screen.

Overclocking your hardware can damage your processor. LEUFKEN TECHNOLOGIES assumes no liability for your damaged hardware.

WARRANTY: Lifetime.

Suggestions:

Suggested voltage is 1.9 max, HOWEVER higher is fine with better cooling (VOS-32 or Alpha) and 2.0 or better should use a DIRECT DIE CONTACT- ALPHA heatsink only- or water/peltier cooling. The VOS-32 blows when used as a direct die sink (compared to the alpha P7125 or P3125).

REMEMBER that cache ratio makes all the difference on reaching max o/c speed. I personally always set to 1/3 or 2/5 to reach max MHz :) The cache must be soldered modified and is provided free of charge to the POMONA COMPUTER FAIR customers.

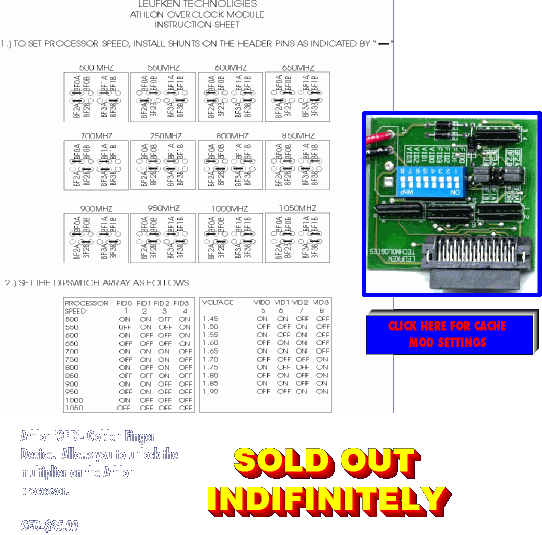

PROPER INSTALLATION OF GFD
